Specification:
– Condition: 100% Brand new
– Material: Plastic
– Housing Color: Black
– Backlight color: Blue
– Voltage: DC 12V
– Operating temperature：-30 ℃ ~ 80 ℃
– Storage temperature：-35 ℃ ~ 85 ℃
– Size: As the pictures show
Fitment：
– Universal fit for most of motorcycle.
– Please ensure this part will fit your motorcycle before you purchase.
Package:
– 1 x Motorcycle meter

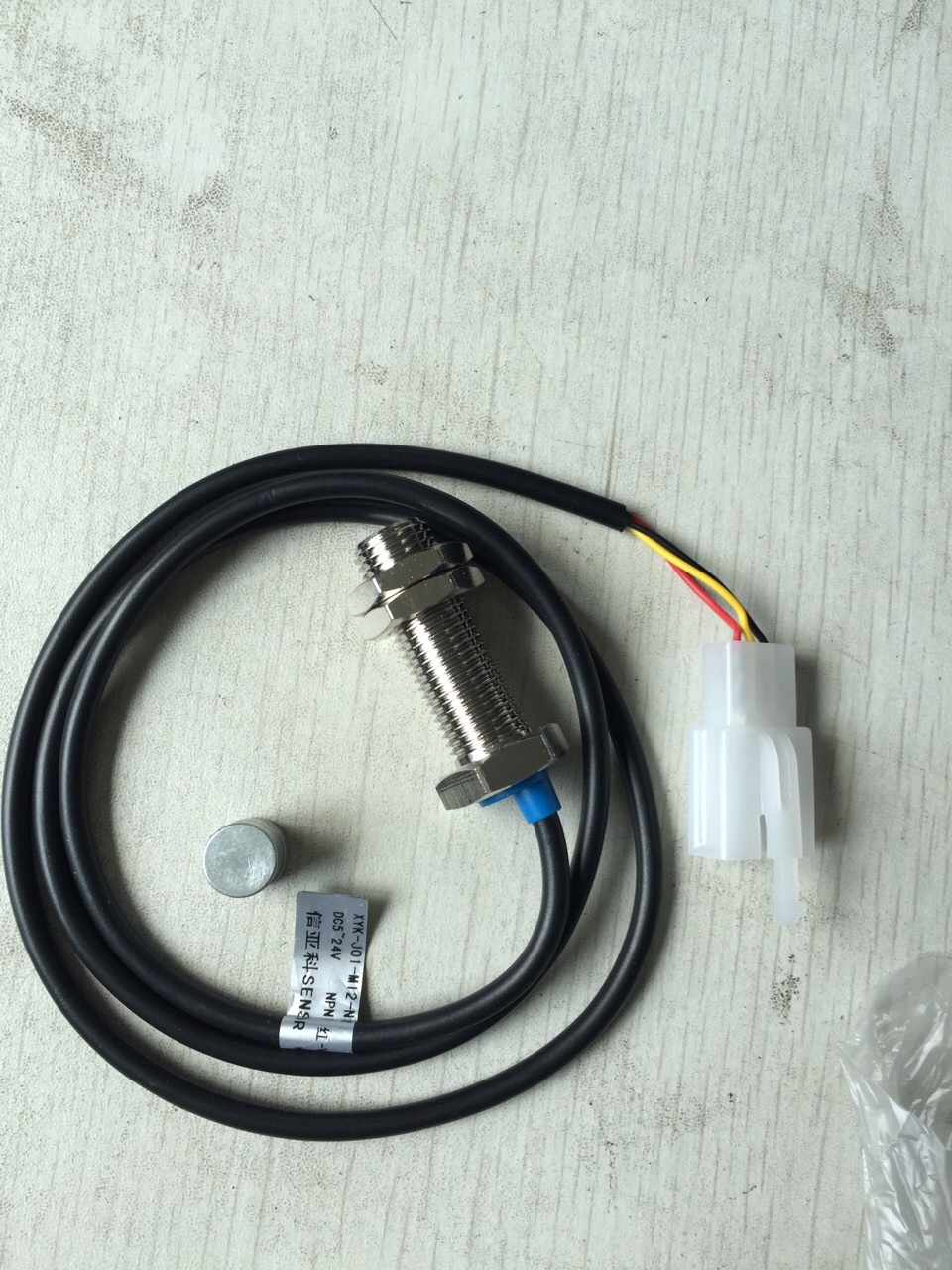

1 x Sensor cable
1 x Mounting holder
– Professionals install is recommended to avoid trouble caused by inexperienced installer!
Feature:
Button operation function:
There is only one button(at the bottom of the speedometer).
Switch between odo/trip mileage accumulation:
Short press the button to switch between the odo/ trip mileage accumulation.
Trip mileage zero clean:
Under the trip mode, long press the button to zero clean the trip .
Switch between inch and metric:
Under the odo mode, long press the button to switch between inch and metric.
Parameter setting:
When the speedometer is powered off, long press the button, power on, enter the setting mode. At this moment,odo/ trip mileage accumulation positions shows ”ccc—” （interfacel）, the first ”-” flashes, short press the button to add or change the number in the flashing position , long press the button to shift. Adjust”—” to 123 to enter the parameter setting mode （interface 2), at this moment,speed position shows cylinder speed”y2” (2 means 2 cylinders,16.6HZ), gear position shows ”1 or 5”(1 means the oil level sensor with 2 wires, 5 means the oil level sensor with 3 wires ), speed accumulation positions shows ”F03.4” (F means frequency, which is used to change the speed), after setting long press the button to save and exit.
Video Demo :
